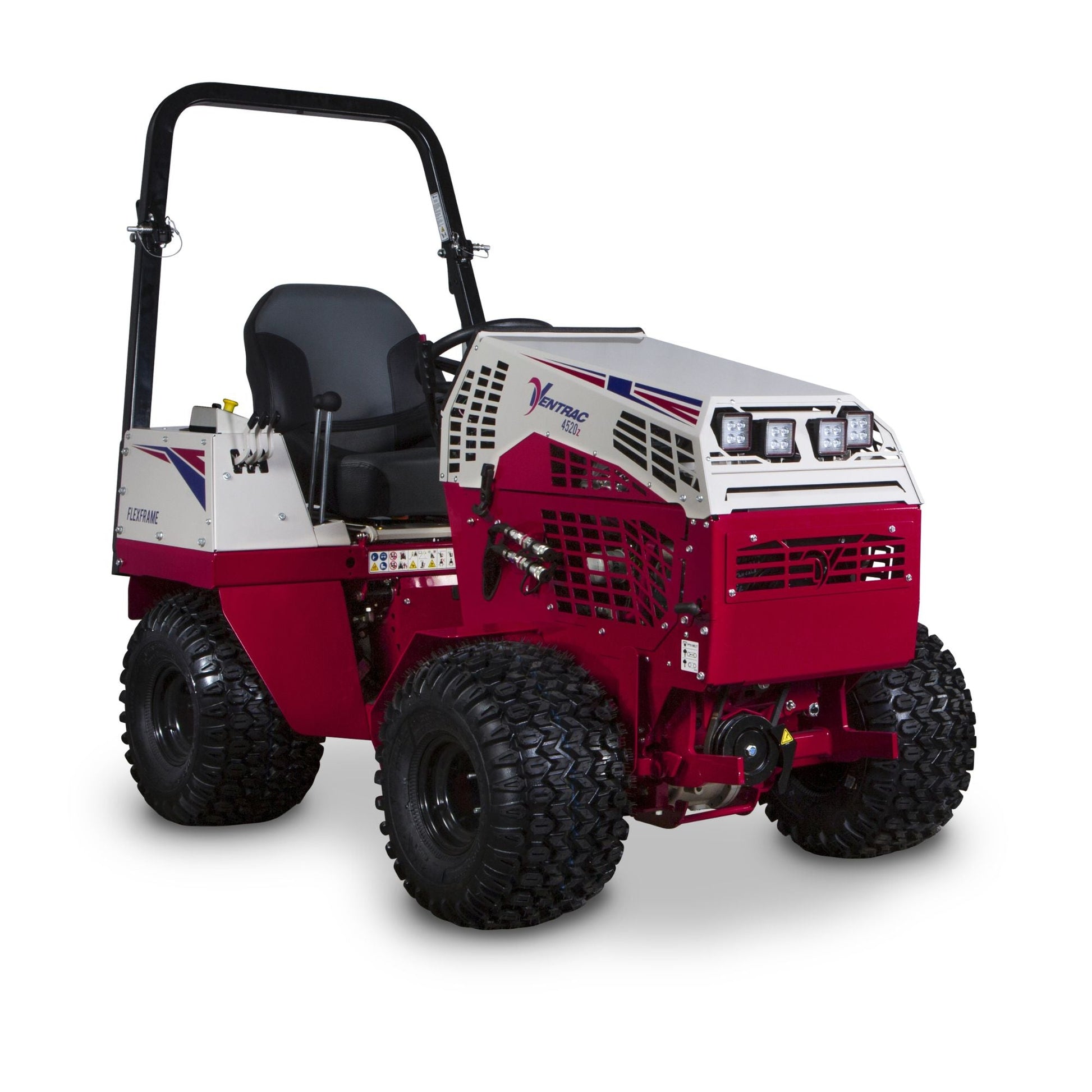

Ventrac 4520P Tractor - Kawasaki Engine

Through Ventrac’s advanced engineering and design efforts, the best mix of machine performance, operator experience, and durability has come together in the 4520 tractor.

Ventrac has become the #1 choice for versatility for grounds care professionals. Combining the perfect blend of peak power and agility with front-mounted attachments for superior visibility, pivoting frame for maneuverability, and proper weight distribution for balance and stability, it’s time to elevate your Ventrac experience to a whole new level.

NEW FOR THE 4520

• Redesigned Operator Dashboard with USB Charge Port
• Improved Performance
• Faster Hydraulic Speed
• Quieter Operation
• Brighter LED Lighting Output

Specifications	39.51216
Model	4520P
Full Description	KN, 4520P Kawasaki FD851D
Product Type	Tractor
ENGINE
Engine Manufacturer	Kawasaki
Model #	FD851D DFI
Horsepower	31 hp
Peak Torque	47.1 ft-lbf
Num. of Cylinders	2
Engine Disp.	824 cc
Cooling	Liquid
Fuel Capacity	6 gal
Fuel Type	Gas
Est. Fuel Economy (W/ 60in Mower)	1.2 gal /hour
DRIVE SYSTEM
Drive	AWD All Wheel Drive
Travel Speed - Low Range	5 mph, 4 mph reverse
Travel Speed - High Range	10 mph, 8 mph reverse
DIMENSIONS
Overall Width	481⁄2 in
Overall Length	811⁄2 in standard hitch, ROPS up
Height (ROPS up)	68 in
Height (ROPS down)	54 in
Weight with 3Pt hitch	1700 lbs
Wheelbase	45 in
Weight	1620 lbs
TIRES
All Terrain	22x12-8
Turf	22x11-10
GENERAL
Turning Radius	39 in
Ground Clearance	5 in
Oscillation amount (@wheel)	71⁄2 in
